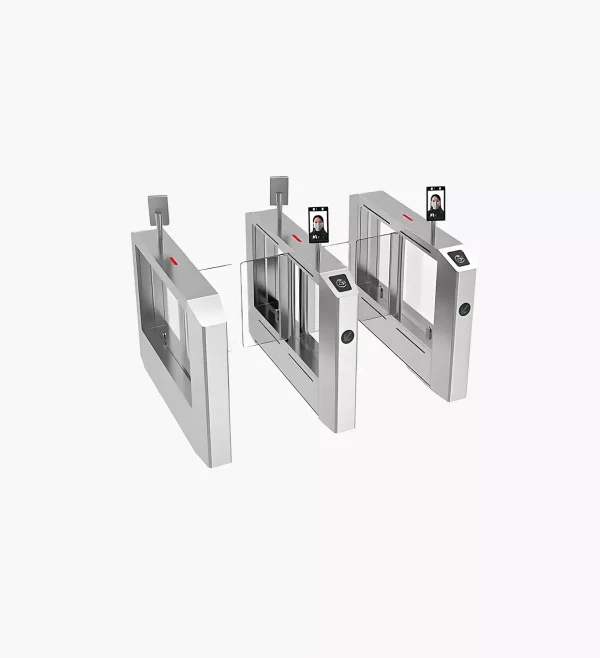

Luxury swing gate

Equipment introduction
The intelligent swing gate is an intelligent barrier-free channel equipment integrating channel detection and control, which adopts mechatronics control, sensor logic programming and over-fast swing door to realize the control and management of the entrance. The equipment can be used with access control, time attendance, computer and other controllers, and authorized legal personnel can pass smoothly without any hindrance without having to be inspected individually, denying unauthorized access, thus providing high-quality access management control.
Logical functions supported by the channel
1) Single-person or multi-person two-way traffic logic function
It supports 1 to 99 continuous door opening signals, and this function can be passed through the host computer
Set the number of memories, up to 9 9;
Support channel logic detection and status output;
Support channel logic door closing control or host computer forced door closing command;
Supports two-way traffic count output.
2) Logical functions such as backpack and hand swing
Only items that are no larger than 500mm can be carried on board;
Swing arm trigger processing within 500 milliseconds (300~500 milliseconds can be set) within 300 mm outside the body.
3) Abnormal logic alarm function
break-in alarm;
One always triggers the anti-intrusion alarm after opening the door;
Tailgating intrusion alarm;
Trigger the reverse alarm after opening the door;
After triggering the door opening, it will wait for an alarm in the detection area for a timeout.
4) Abnormal logic functions that cannot be handled
Two or more people in parallel, hugging and walking;
Basic parameters of the device
Box size:1400*W200*1000(mm)
Box material: 304 stainless steel; Not less than 1.5mm thick
Channel length: 1400mm
Door material: 10mm PVC material
Channel width: 600 ~ 900mm The designated door body needs to be customized
Installation Environment: Indoor/Outdoor
Power supply: DC 24V, AC220 plus or minus 10%
Device power: dynamic 100W: static 30W peak: 150W
Operating temperature: -20 ~ 70°C
Storage temperature: 0 ~ 60°C
Equipment life: 5 million times, average maintenance time of 30 minutes
Control interface: I/O; RS232 or RS485; TCP / IP
Door control: 360-degree tooth clutch lock; More than 50N*m
Door body travel: 180 degrees; Center split at 90 degrees (optional)
Door speed: 0.5 ~ 2 seconds (user set)
Motor: brushless servo motor
Door positioning: 4th percentile, 1/4 accuracy, 360° encoder
Equipment noise: the door opening and closing is not more than 60 decibels
