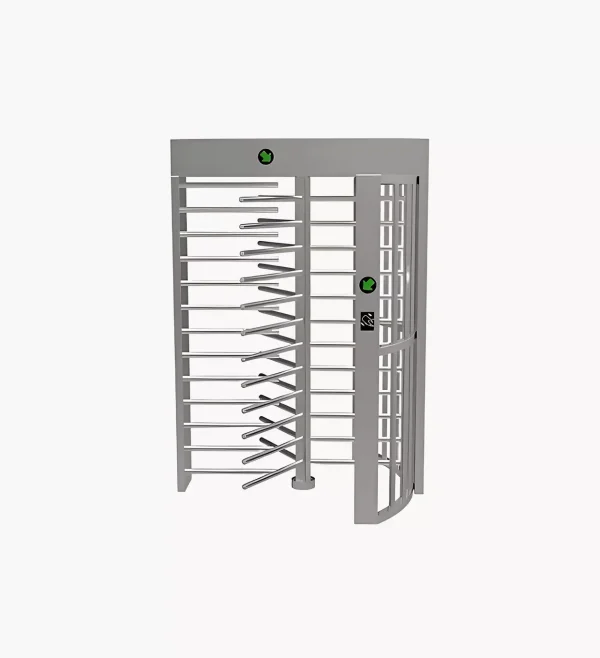

Single-aisle, full-height turnstile

Detailed description
The shape of the equipment is stamped and formed by stainless steel plate, which is beautiful and generous, rust-proof and durable, and adopts standard electrical interfaces to the outside world, which can easily integrate barcode cards, ID cards, IC cards and other card readers on this equipment, providing a civilized and orderly way of passage for personnel entering and exiting, and at the same time can prevent illegal personnel from entering and exiting; In addition, the system is also specially designed to meet the requirements of fire protection, in the event of an emergency, to ensure that the passage is unimpeded, to facilitate the timely evacuation of personnel.
Features:
1. With the function of automatic reset, after the pedestrian reads the valid card, if the system does not pass within the specified time, the system will automatically cancel the pedestrian access authority;
2. The unified standard external electrical interface can be connected with a variety of card readers, and can be remotely controlled and managed through the management computer;
3. The whole system runs smoothly and has low noise;
Main technical parameters:
1. Power supply voltage: AC220±10% V, 50HZ
2. Drive motor: DC motor 24V/100W
3. WORKING ENVIRONMENT TEMPERATURE: –15OC – 60 OC
4. Relative humidity: relative humidity ≤ 90%, non-condensing
5. Input interface: 12V level signal or 12V pulse signal with pulse width >100ms> driving current 10mA
6. Communication interface: RS485 electrical standard,
7. Communication distance: ≤1200 meters
8. Traffic speed: 30 people/min (normally open mode), 20 people/min (normally closed mode)
9. LENGTH*WIDTH*HEIGHT: 1500*1500*2300MM
10. Gate opening and closing time: 1 second
Product structure and how it works
1. Mechanical system of channel gate
The channel gate mechanical system is divided into two parts: the structural frame and the movement. The structural frame is used as a carrier, and a direction reading and writing device is installed on it, and the movement is composed of a motor, a frame, a transmission shaft, a gate, etc.;
2. Channel gate electronic control system
The electronic control system consists of a card reader, a main control board, a limit switch, a transformer, a battery, an electromagnet, a relay, etc.
Card reader (self-provided): After reading the information on the card and processing it is judged, it sends a signal (switch signal) to the main control board.
How the system works
1) Turn on the power and the system will enter the working state after 3 seconds.
2) When the card reader reads a valid card, the peak ringer will make a pleasant sound, prompting pedestrians to read the card successfully; At the same time, the information read from the card is judged and processed, and the application is sent to the main control board to pass the signal;
3) The main control board receives the card reader, and after comprehensive processing, sends an effective control signal to the motor to make the motor run, the limit switch controls the motor rotation angle, the gate is opened (when the normally open mode, the motor does not move), and pedestrians are allowed to pass
